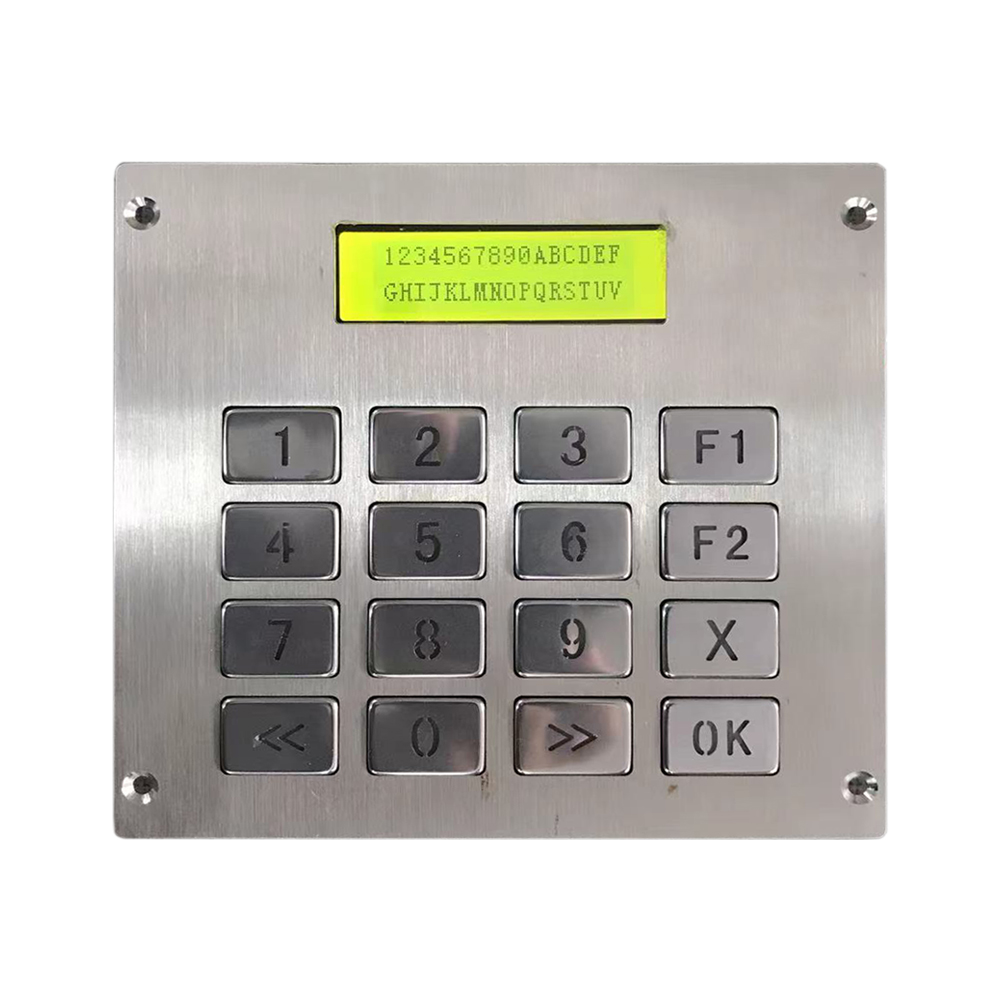

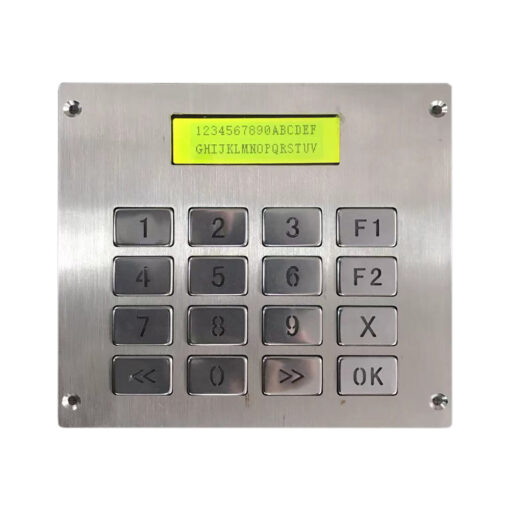

KY3088LCD
Features:
● Panel adopts high quality SUS304 wire drawn stainless steel, anti-riot, anti-corrosion
● SUS304 Wire drawn stainless steel keys (laser etched when characters are black)
● Key screen printing (etching) content can be customized according to customer requirements
● LCD screen with 122*32
● Backlight
● Can be used for low temperature environment
16 keys kepad with LCD:122*32,122 * 32 dot matrix, yellow green backlight display
Mechanical / Electrical Data:
| Power Supply | DC5V±5% |
| Working Current | <150mA |
| Interface | USB、PS/2, RS232 |
| Operation Force | 220g±20g |
| Durability | ≥ 2Million |
| Packing Dim | 160*160*60mm |
| Mounting Way | Rear mounting or Front mounting |
| Operating Temperature | -10℃~55℃（Relative humidity20%~85%/ Atmospheric pressure60~106Kpa） |
| Storage Temperature | -30℃~85℃（Relative humidity5%~90%/ Atmospheric pressure60~106Kpa） |
| Compatible With Systems | Window XP、Window 7、Window 8、Linux、Ubuntu、Android |
| Approvals | ROHS、IP65、FCC、CE |
Applications: oil and gas,Parking, vending machine,Industrial automation, Transportation-Automotive,kiosks, pharmaceutical, medical, Healthcare, agricultural, etc.
