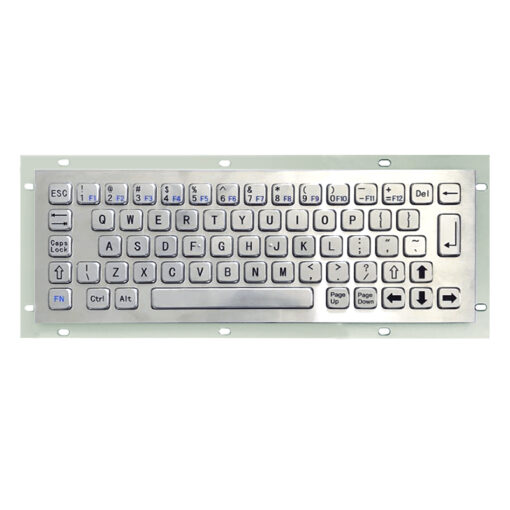

KY-PC-N270

Product features:

● Panel adopts high quality SUS304 stainless steel, anti-riot, anti-corrosion

●SUS304 stainless steel keys

●3mm aluminum alloy base plate

● Support keyboard layout of various countries (customized according to customer needs)

● Can be customized function key or key combination

Send Inquiry

Compact keyboard

Specification parameters:

Operating voltage 5V±5%

Operating current <100mA

Key life >2 million times

Data port USB/PS/2

Operating systems Window XP, Window 7, Window 8, Window 10, Linux, Ubuntu, and Android

Key size 14*14*4.5/28*14*4.5/100*14*4.5mm

Key stroke 1.5mm

Key force 1.2N+/-0.1N (contact force)

Installation mode from bottom up, the base plate fixed assembly

The net weight of the product is 075Kg

The gross weight of the product is 0.9Kg

Operating temperature -10℃~45℃ (relative humidity 20%~85% / atmospheric pressure 60~106Kpa)

Storage temperature -30℃~85℃ (relative humidity 20%~90% / atmospheric pressure 60~106Kpa)

KY-PC-N270
