KY2140
Main Feature:
● Panel adopts high quality SUS304 wire drawn stainless steel, anti-riot, anti-corrosion
● SUS304 Wire drawn stainless steel keys (laser etched when characters are black)
● Key screen printing (etching) content can be customized according to customer requirements
Operating voltage 5V±5%
Operating current <150mA
Service life >2 million times
Product interface USB/PS/2
Operating systems: Window XP, Window 7, Window 8, Window 10, Linux, Ubuntu, and Android
Key size 14*14*2.0mm / 20*14*2.0mm
Key stroke 0.45mm
Key force 2N+/-0.1N (contact force)
Mounting mode Assemble from bottom to top
The net weight of the product is 0.5Kg
Gross weight of the product is 0.65Kg
Operating temperature -10℃~45℃ (relative humidity 20%~85% / atmospheric pressure 60~106Kpa)
Storage temperature -30℃~85℃ (relative humidity 20%~90% / atmospheric pressure 60~106Kpa)

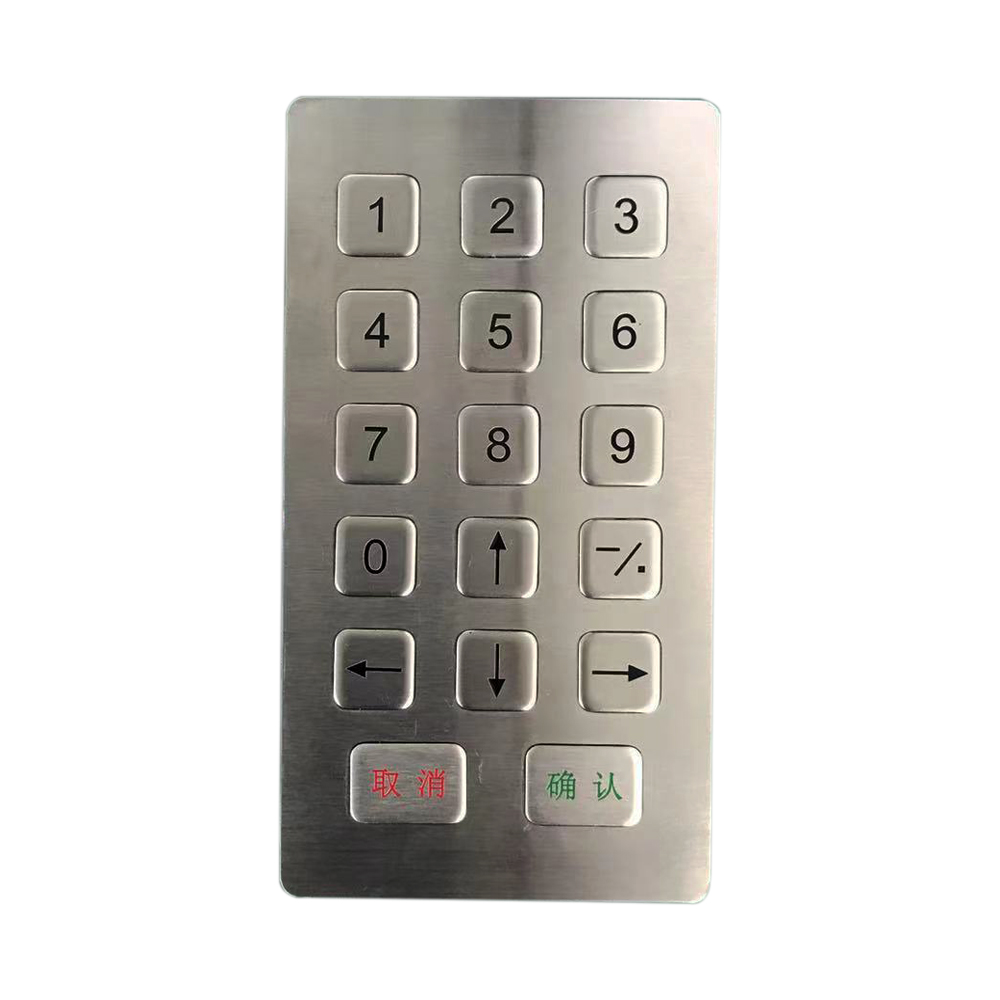

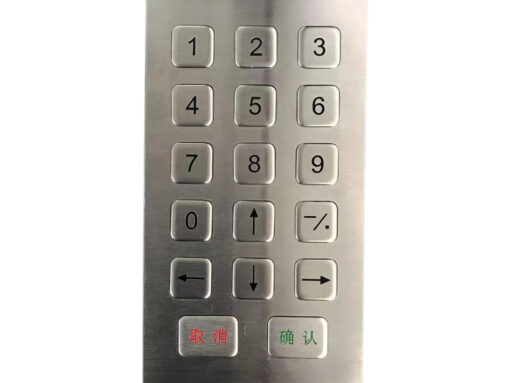

The product is an encrypted digital keyboard with 17 keys. It is an embedded device widely used in the field of financial equipment, communication equipment,
Mechanical equipment field and a series of self-service terminal equipment field.
