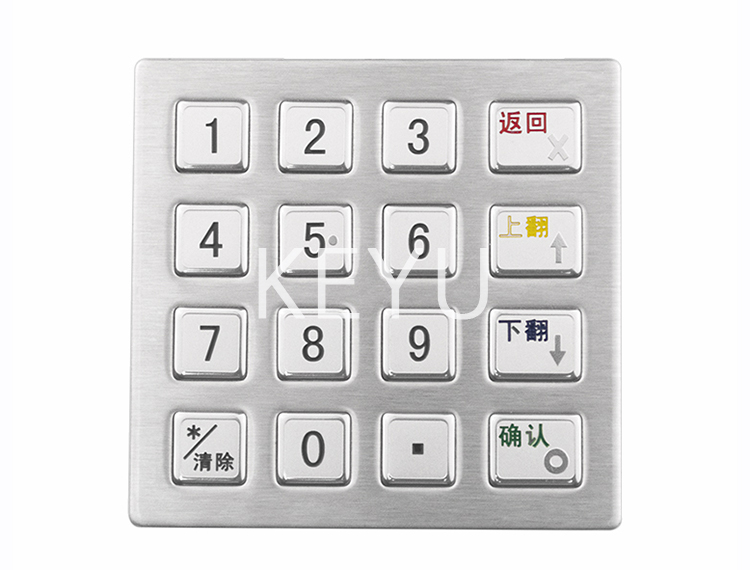

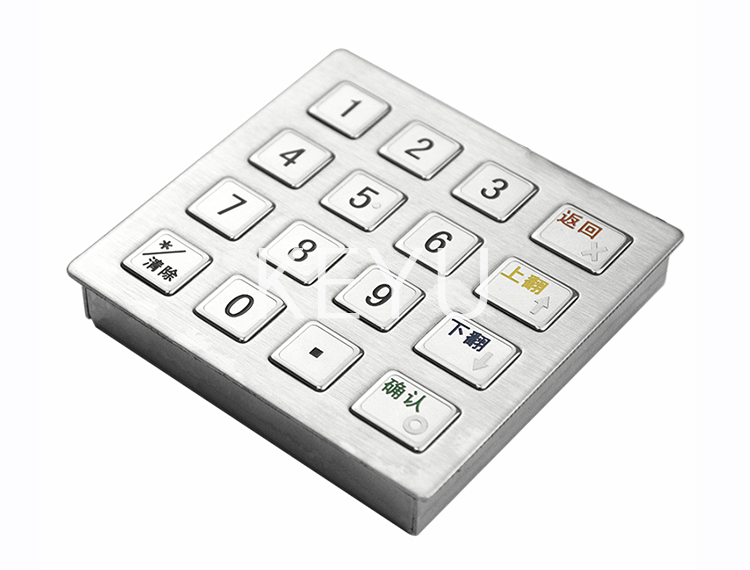

KY3080
Dimension:
- Front Panel : 88*77 mm
- Overall : 88*77 mm
Features:
- stainless steel Buttons, compact layout.water&vandal proof design，customized for free.
- Password feature: PIN Encryption, MAC Calculation, Data Encryption and Decryption.
- Support Non-encryption Model.
- Encryption Model: Hardware Encryption
- Advanced professional security Chip
- Support 2*4 Function keys (FDK)
- Encryption support MAC、DES(3EDS) and SM4
- Password length: 4~12
- BitKey length: 8/16/24 bit
Mechanical / Electrical Data:
| Power Supply | DC5V±5% |
| Working Current | <100mA |
| Interface | USB，PS/2 or RS232 |
| Key Trip | 1.5mm |
| Operation Force | 2~3N |
| Durability | ≥2 Million |
| Operation Temperature | -20℃~55℃（Relative humidity 20%~85% / Atmospheric pressure 60~106Kpa） |
| Storage Temperature | -30℃~85℃（Relative humidity5%~90%/ Atmospheric pressure60~106Kpa） |
| Compatible With Systems | Window XP、Window 7、Window 10、Linux、Ubuntu、Android |
Applications: Ticket Vending Machine, Kiosk, Parking Solution,Self service payment machine
