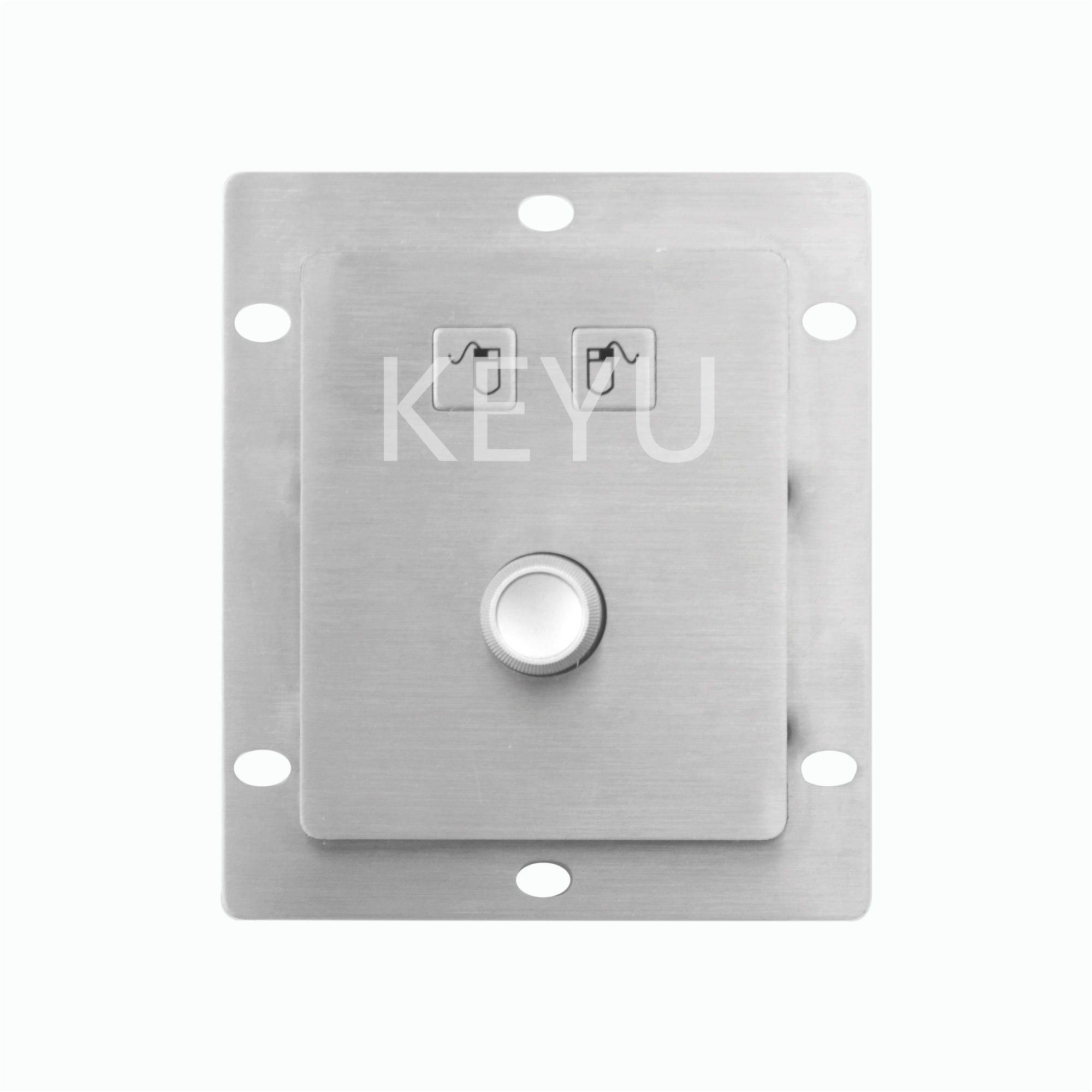

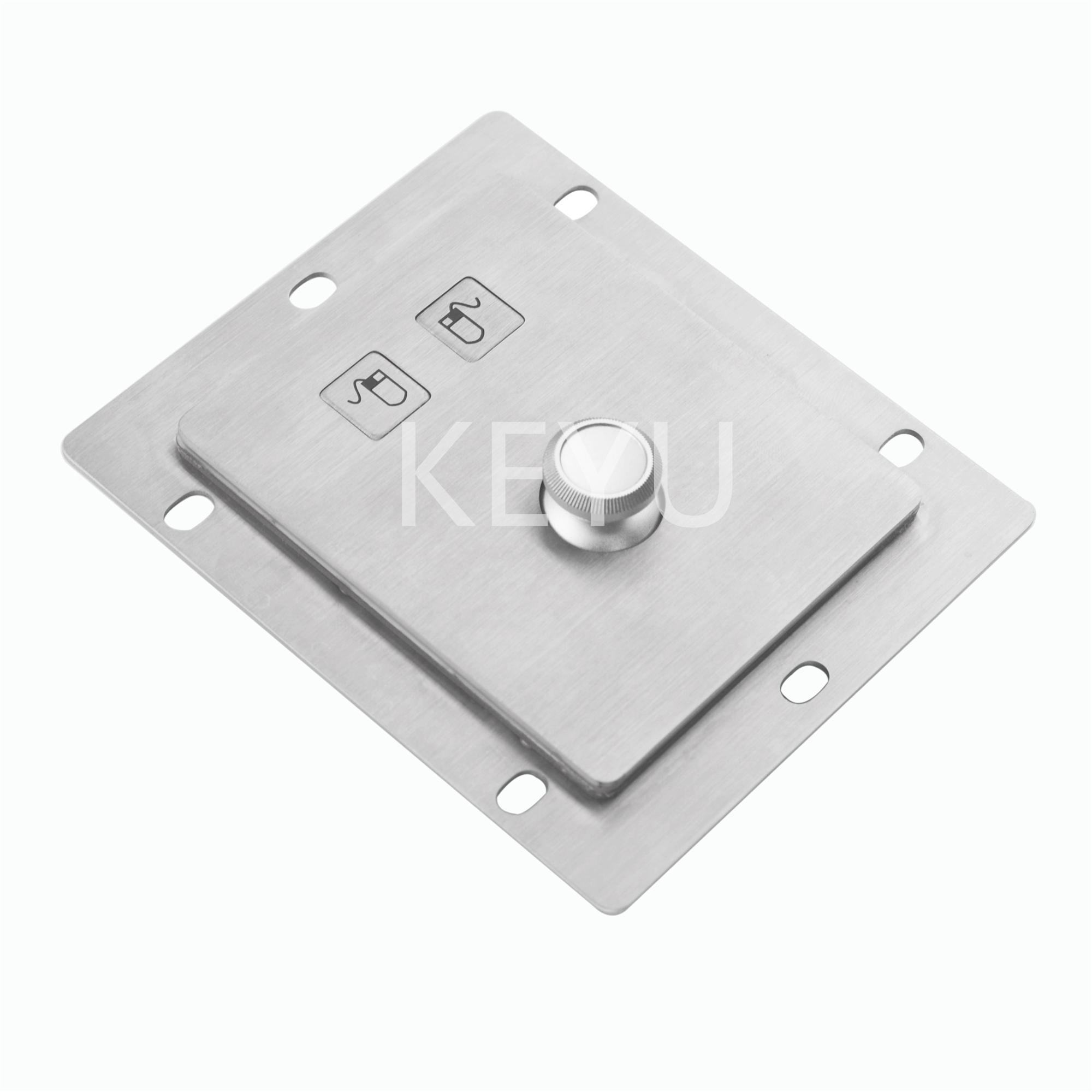

KY-YG01
Product name：Hula point
Model name ：KY-YG01
Product overview：
This product adopt Metal shrapnel conductive way to achieve mouse button function input, joystick movement to achieve cursor positioning, two function keys, widely used in self-service vending machine, self-service kiosk, intelligent storage express cabinet, industrial control equipment, military equipment and other fields.
Features：
- The Panel adopts high quality SUS304 wire drawing stainless steel , anti-riot, anti-corrosion.
- SUS304 drawing stainless steel keys( Black character , laser etched)
- Fast and reliable positioning, flexible and convenient operation
Mechanical /Electrical data：
| Power supply | 5V±5% |
| Working current | <100mA |
| durability | >2 Million |
| Interface | PS/2 /USB |
| Compatible with system | Window XP、Window 7、Window 8、Window 10、Linux、Ubuntu、Android |
| Key size | 12mm*12mm*1.5mm |
| Key Trip | 0.45mm |
| Operation force | 2N ± 10% |
| Mounting way | Rear mounting |
| Net weight | 0.25Kg |
| Gross weight | 0.3Kg |
| Working Temperature | -10℃~50℃（Relative humility 20%~85% / Atmospheric pressure 60~106Kpa） |
| Storage Temperature | -30℃~85℃（Relative humility 20%~90% / Atmospheric pressure 60~106Kpa） |
