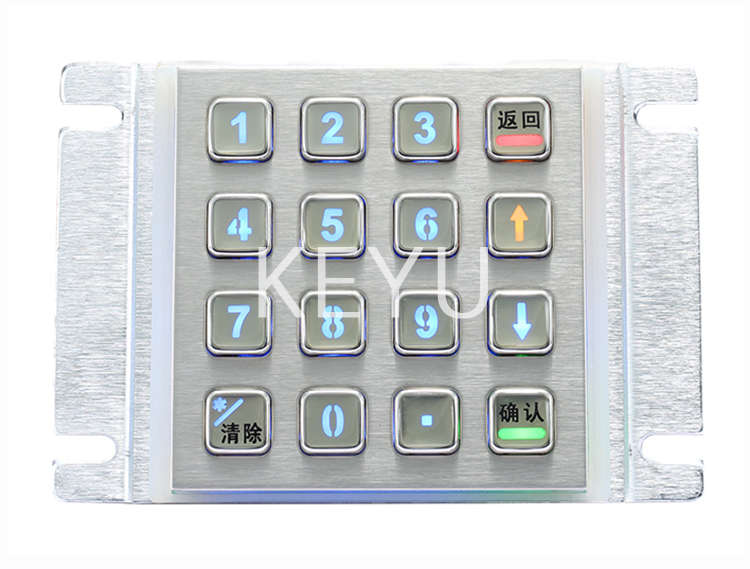

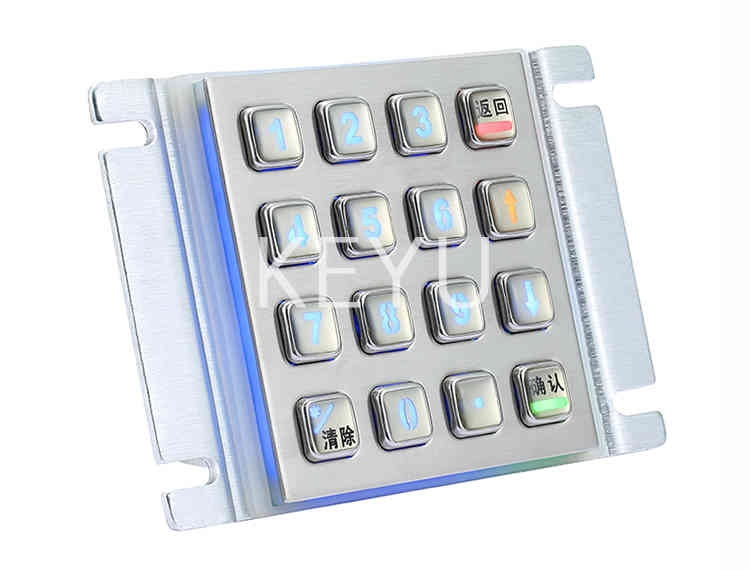

KY2088B-LED

Product Name ：Numeric Keyboard

Model ：KY-2088 LED

Product Overview :

16 Buttons made of stainless steel, the button with back-lit function , It is an embedded device , widely used in financial , communications , military and other self-service equipment fields.

Features：

High-quality SUS304 stainless steel side keypad, rugged vandal proof, Anti-corrosion design.
SUS304 stainless steel Buttons
Embossing is available
Customized layouts.
button with back-lit function

Send Inquiry

Category: Backlit Keyboard

Description

LED backlight keypad

Model：KY2088B-LED

Mechanical / Electrical Data：

Keys：16
Power supply：DC5V±5%
Working current：<150mA
Interface：USB、PS/2 /RS232
Operation force：280g±20g
Durability：≥2 Million
Front panel：87.5*91.5mm
Overall：138*95*17mm
Operation temperature：-20℃~55℃（Relative humidity 20%~85% / Atmospheric pressure 60~106Kpa）
Storage temperature：-30℃~85℃（Relative humidity5%~90%/ Atmospheric pressure60~106Kpa）
Compatible with systems：Window XP、Window 7、Window 8、Linux、Ubuntu、Android
Approvals：RoHS、IP65、FCC、CE
