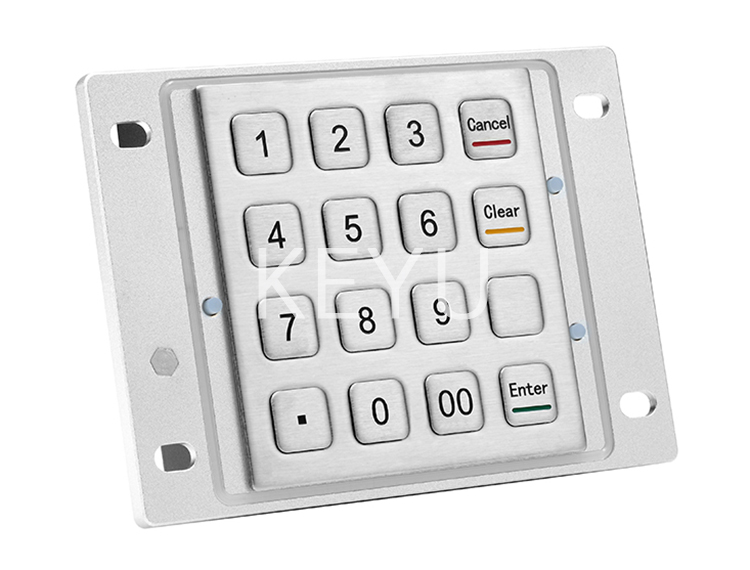

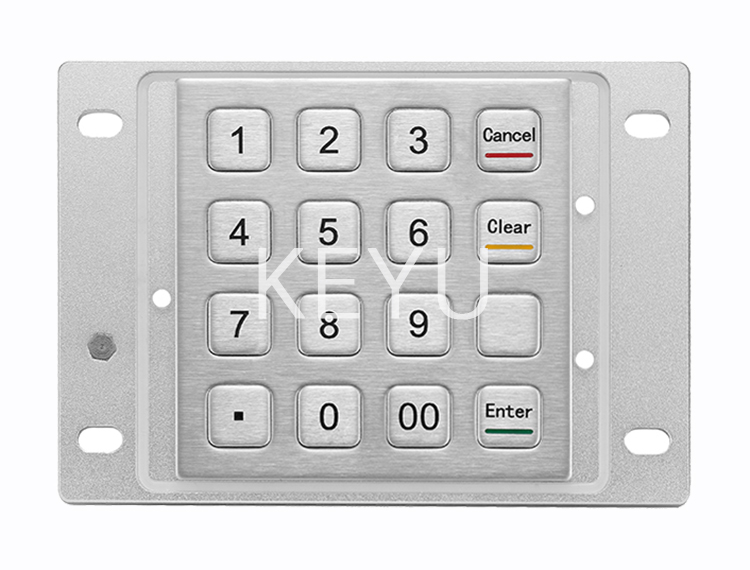

KY3688C
Metal PCI EPP（PCI PTS）
Model/Name: KY3688C / （pci encrypting pin pad）
Size： 87.5*91.5 mm
Device Manufacturer: Shenzhen Keyu Co Ltd
PIN Entry Technology: Physical keypad
Class: PED
Interface: RS232 Serial Port
Key Management: MK/SK
PIN Entry Evaluated: Online
Environment
Temperature range: -40°C ~ 105°C
Relative Humidity: 5% ~ 95% (Non-condensing)
Operating Voltage: 5.0V ±10%
Battery Voltage: 3.0V ±10%
ESD: 6K
Certificates
PCI 3.0
CE / ROHS / FCC / IP65 / IK7
Algorithm & Standard
3DES, AES, SHA256, RSA
ISO9564-1 0 / 1 / 3 / 4, ANSI X9.8, ANSI X9.19, ECB, CBC
Characteristic
ESD: 8K
MTBF: > 42950
Material: #304
Layout: defined (include braille)
Key Press Life: 2 millions
Current: <40mA
Key Number: 16 (Master Key, PIN Key, Mac Key, Data Key)
Key Loading: remote
The POI is intended for use in both attended and unattended
