KY3088E

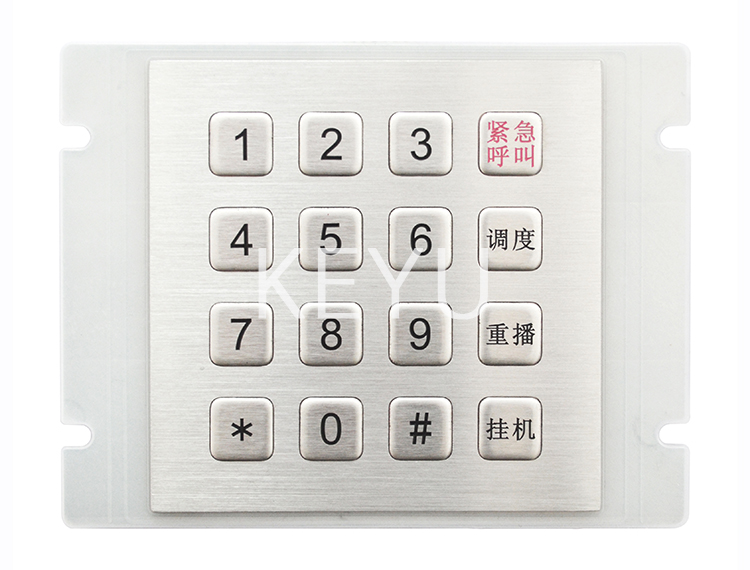

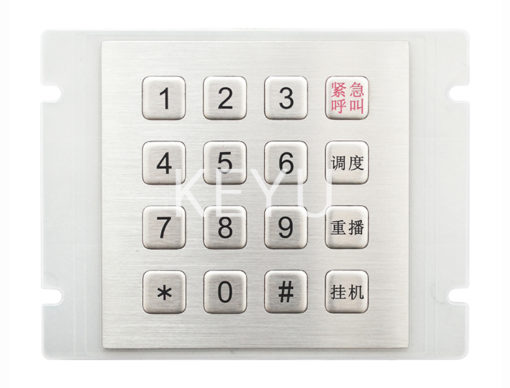

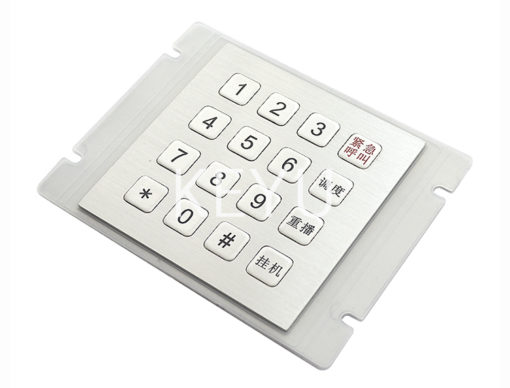

16 KEY Matrix Keyboard
Dimension ：
- Front Panel: 100*100 mm
- Overall : 139.6*107.8 mm
Features:
- stainless steel Buttons, water&vandal proof design
- Compact layout, customized for free
- Laser or etching procedure for key labeling optional
- Durability≥2 million
SHENZHEN KEYU Provided: Medical keyboard、Metal Numeric Keypad，Access Control Keypad，PCI pinpad，Metal Keypad With Touchpad
Keyu manufactures various metal numeric keypads, such as PCI pinpad, matrix keypad, USB keypad, RS485 keypad.The layout can be customized for free
Mechanical / Electrical Data:
| Power Supply | DC5V±5% |
| Working Current | <150mA |
| Interface | USB，PS/2 or RS232 |
| Key Trip | 0.45mm |
| Operation Force | 220g±20g |
| Packing Dim | 160 *160*60 mm |
| Operation Temperature | -20℃~55℃（Relative humidity 20%~85% / Atmospheric pressure 60~106Kpa） |
| Storage Temperature | -30℃~85℃（Relative humidity5%~90%/ Atmospheric pressure60~106Kpa） |
| Compatible With Systems | Window XP、Window 7、Window 10、Linux、Ubuntu、Android |
| Approval | RoHS、IP65、FCC、CE |
Application: Ticket Vending Machine, Kiosk, Parking Solution,Self service payment machine
