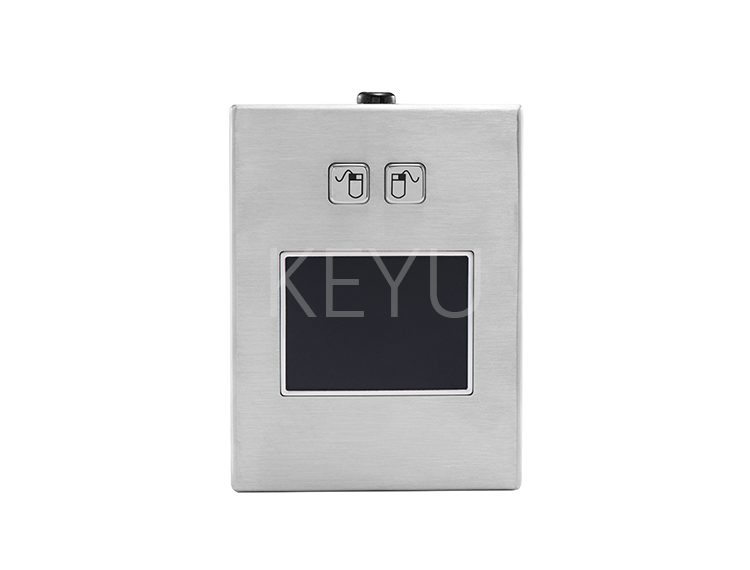

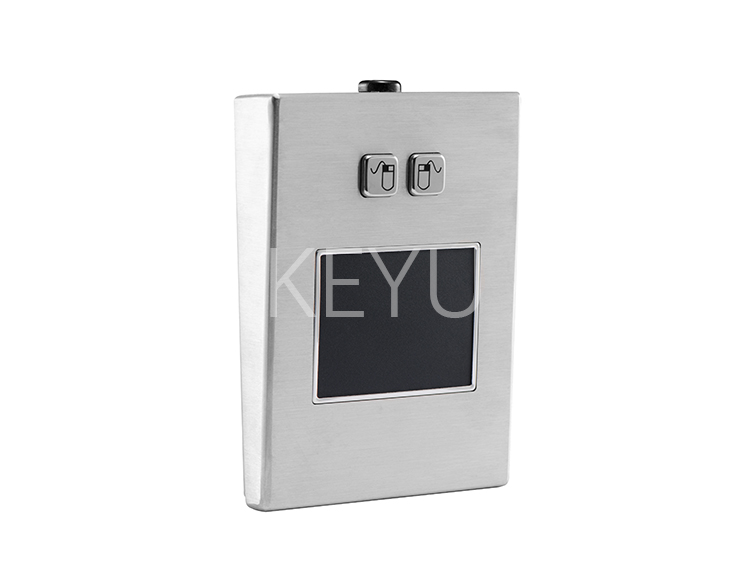

KY-TB-A-DESK

Metal Waterproof Touchpad

Dimension ：

Front Panel: 100*133 mm
Overall : 100*133*25.4 mm

Feature:

Patent product, high resolution trackball
Resistant to dirt, dust and liquid
Very rugged vandal proof design
Mounting kit and Desktop kit optional
Resolution: above 10000dpi
Front Panel :304 stainless steel
Trackball and keys: 304 stainless steel
Back panel: Aluminum
Voltage: 5.0VDC+_5%
EMC Emission : EN55022(B)

Send Inquiry

Waterproof Touchpad

Mechanical / Electrical Data:

Power Supply	DC5V±5%
Working Current	<150mA
Interface	USB、PS/2
Operation Force	<2N
Durability	≥ 2Million
Mounting Way	Rear mounting or Front mounting
Storage Temperature	-10℃~55℃（Relative humidity20%~85%/ Atmospheric pressure60~106Kpa）
Storage Temperature	-30℃~85℃（Relative humidity5%~90%/ Atmospheric pressure60~106Kpa）
Compatible With Systems	Window XP、Window 7、Window 8、Linux、Ubuntu、Android
Approvals	ROHS、IP65、FCC、CE

Applications: kiosks, vending machine,Transportation-Automotive, pharmaceutical, medical, oil and gas,library Etc

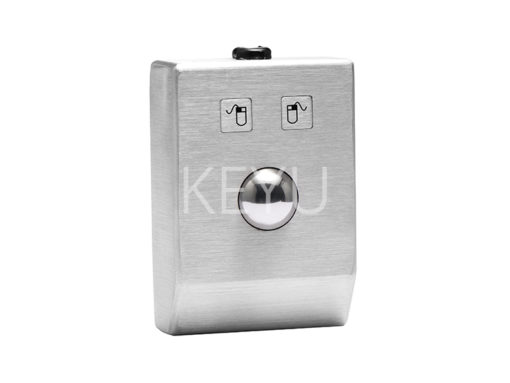

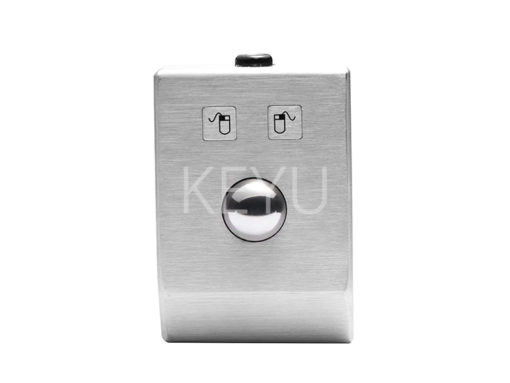

KEYU Pointing Device:Metal trackball Mouse、Desktop metal optical trackball、Desktop metal mechanical trackball、Metal Touchpad Mouse、Hula point device、Desktop metal trackball、
